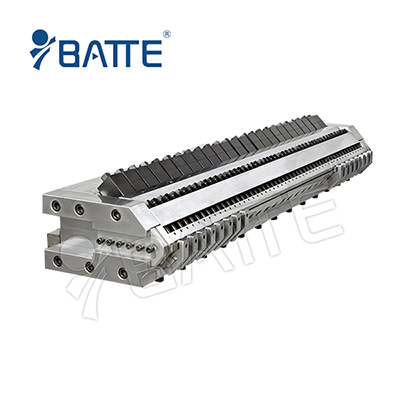

Plastic Sheet Die

Application field
stationery,advertisement,package
Technical data
Item Specification
Die steel P20/5CrNiMo
Material PE/HDPE/LDPE/PA/PS/LDPP/HDPP/ABS/EVA/PC/PMMA
Width of the die 500mm-5000mm
Thickness of the product 0.2-2mm
Choked flow rope 90°
Way of flow passage clothes rack type
voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
Item Specification
Die steel P20/5CrNiMo
Material PE/HDPE/LDPE/PA/PS/LDPP/HDPP/ABS/EVA/PC/PMMA
Width of the die 500mm-5000mm
Thickness of the product 0.2-2mm
Choked flow rope 90°
Way of flow passage clothes rack type
voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
